MC440™ Cultivator

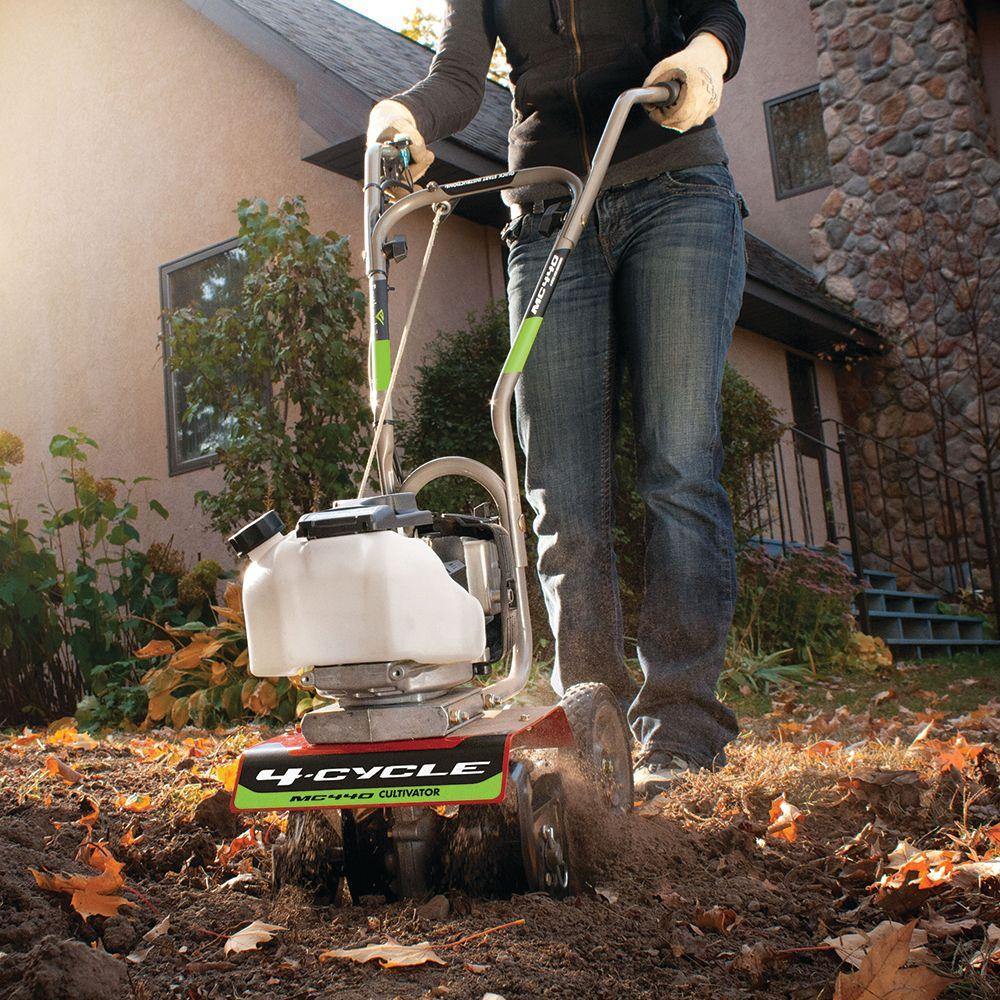

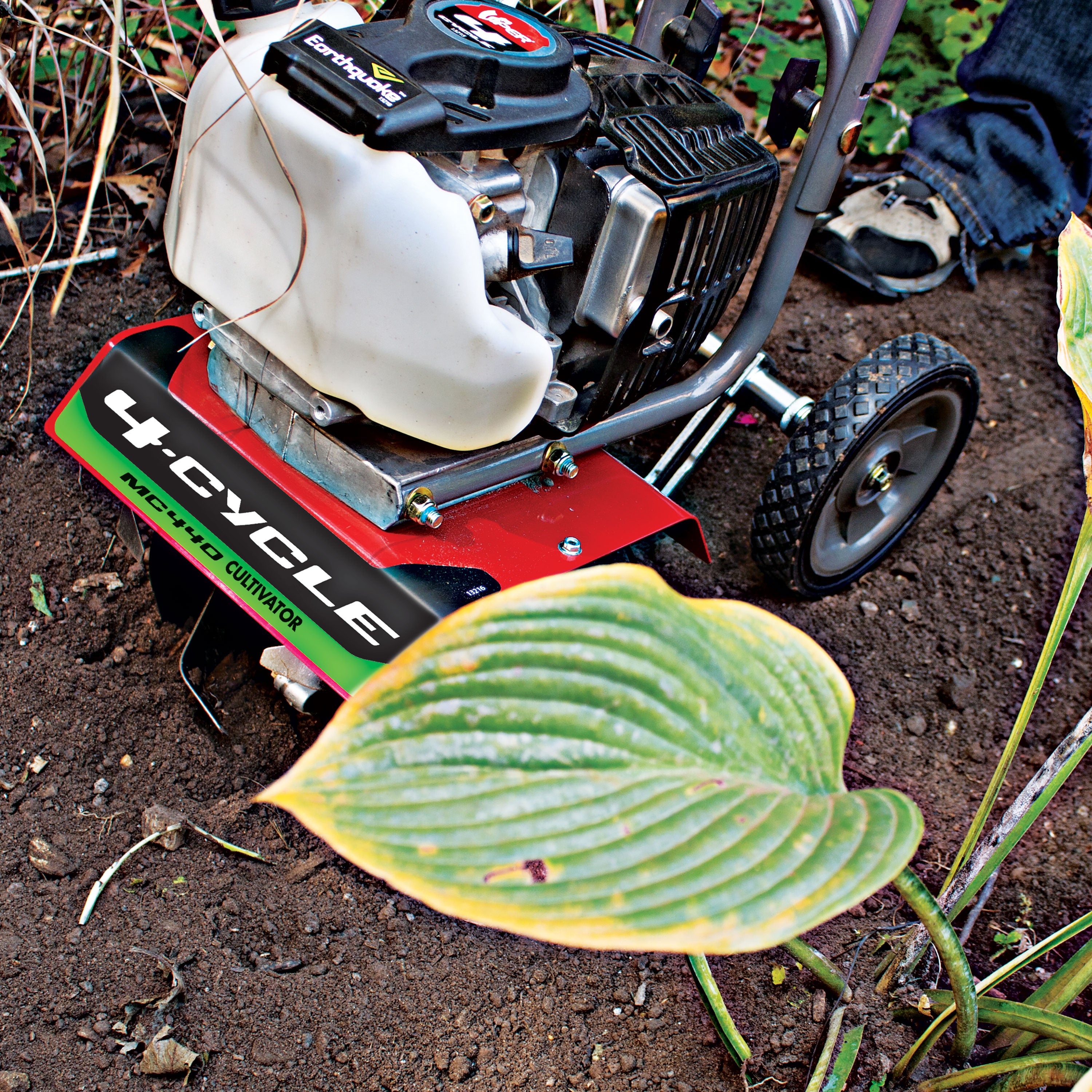

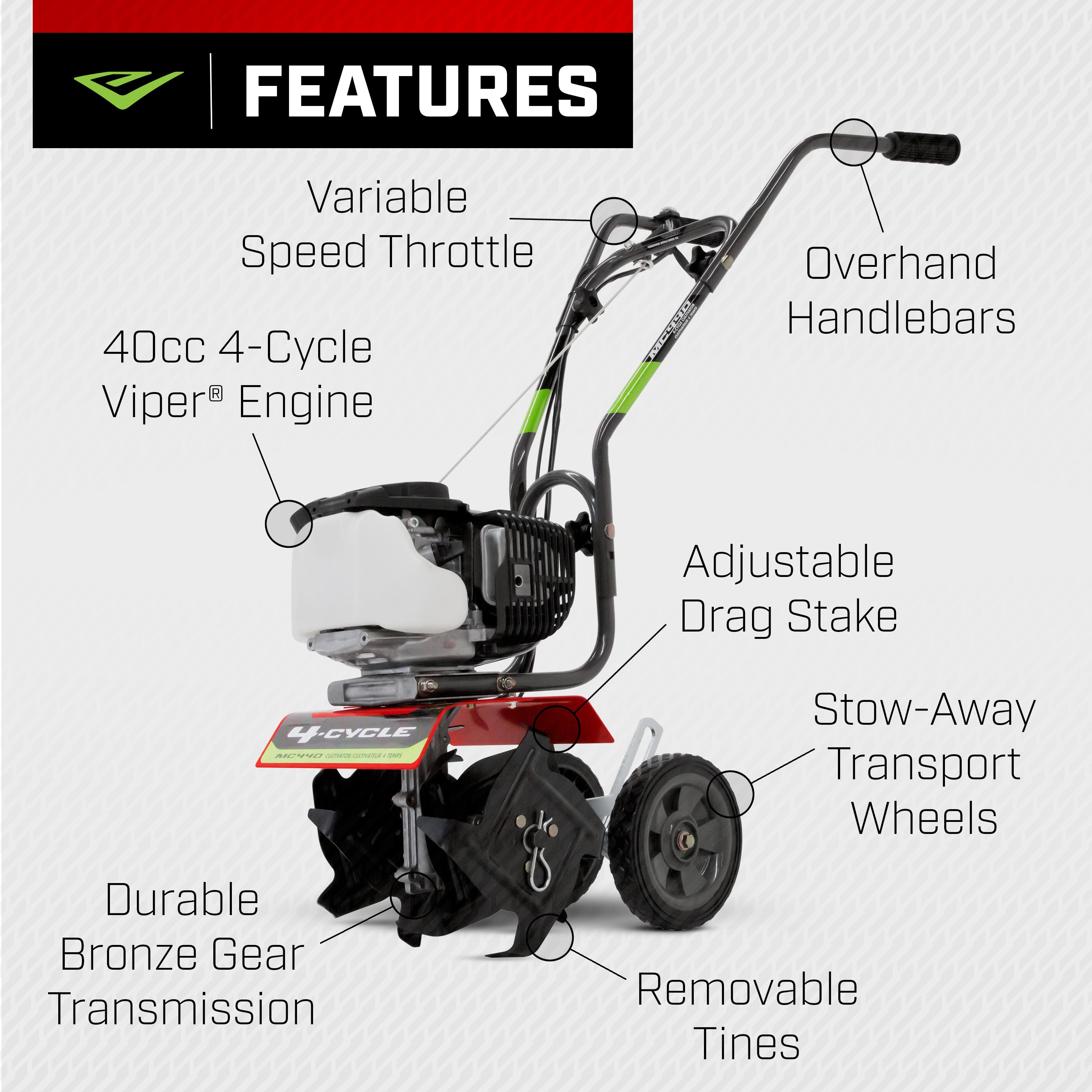

The Earthquake MC440 4-cycle cultivator is a powerful and lightweight solution to maintaining your garden. Designed with stand-up starting, you can comfortably control stops and starts without bending over. The largest-in-class 40cc Viper 4-Cycle engine requires no mixing of oil and fuel. It also produces less noise, and lower emissions. A variable speed control provides versatility when cultivating different soil types. The MC440 also features block-style air filter to keep damaging dirt outside your engine and in the garden. Model #12802

MODEL #	12802
ENGINE BRAND	VIPER®
ENGINE TYPE	4-CYCLE
ENGINE TORQUE (FT-LB)	1.6 FT-LB @ 5000 RPM
FUEL TYPE	87+ OCTANE UNLEADED GASOLINE
STARTING SYSTEM	RECOIL
CYLINDER CONFIGURATION	HORIZONTAL
CYLINDER MATERIAL	ALUMINUM
FLYWHEEL	CAST ALUMINUM
FUEL CAPACITY (GAL)	0.21
DISPLACEMENT (CC)	40
FUEL TANK	NYLON
TRANSLUCENT FUEL TANK	YES
THROTTLE CONTROL	ON HANDLEBAR
COMPRESSION RELIEF VALVE	NO
MUFFLER GUARD	NO
ON/OFF SWITCH	HIGH PROFILE, ON HANDLE
RECOMMENDED OIL	10W-30
CAPACITY (L)	0.12
LOW OIL SHUTDOWN	NO
SPARK PLUG	NGK CMR6A
CERTIFICATIONS	EPA III, CARB
DRIVE SYSTEM	BRONZE GEAR DRIVE
ANSI B71.8-1996	YES
HANDLEBAR STYLE	BICYCLE WITH KNOBBY GRIPS
MULTIPLE HEIGHT POSITIONS	2
OPERATION	TWO-HANDED
SELF PROPELLED	NO
TILLING DEPTH (IN)	8

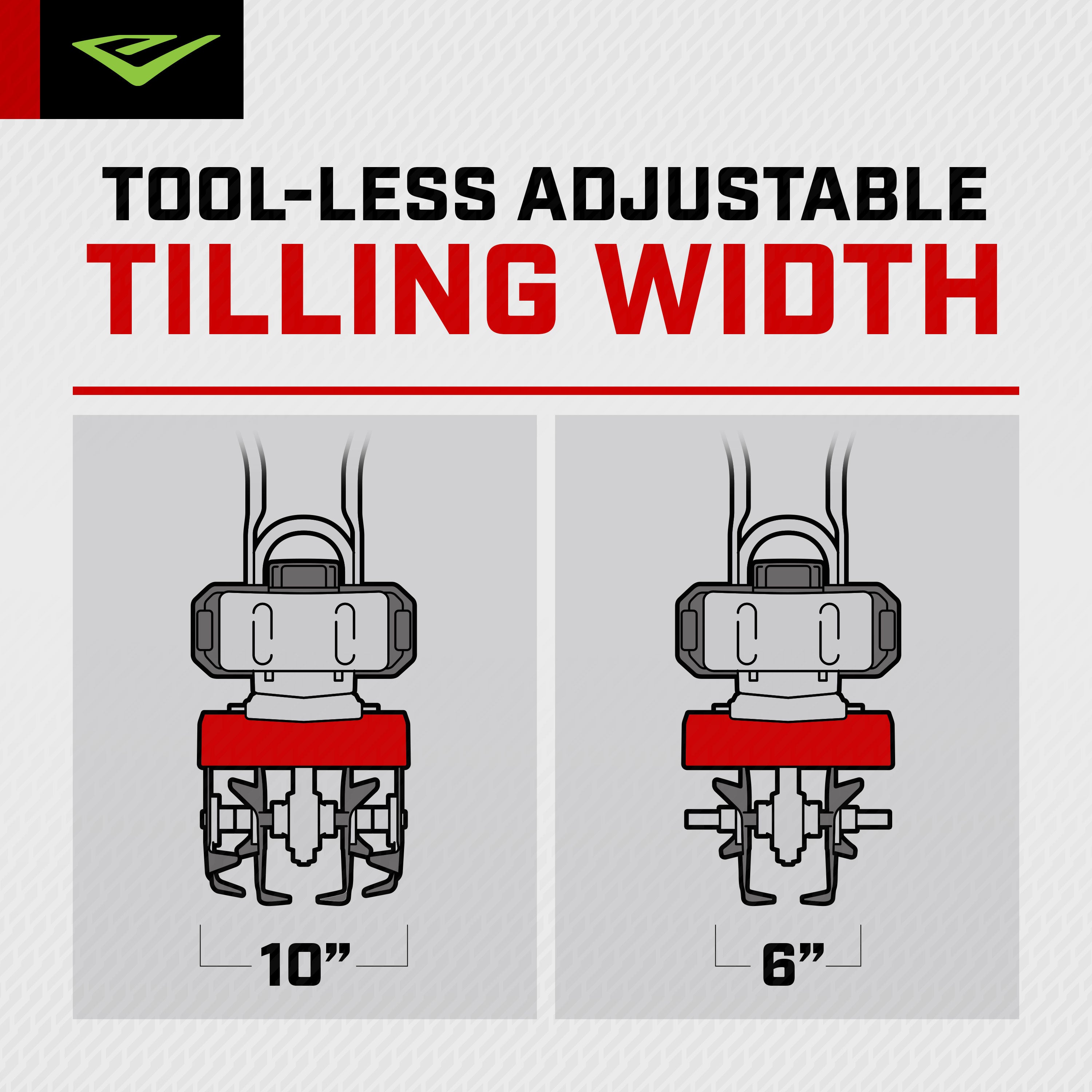

TILLING WIDTH (IN)	6 MIN, 10 MAX
TINE MATERIAL	SPRING STEEL
TINE SPEED (RPM)	250
TINE ROTATION	SRT
TRANSMISSION STYLE	GEAR DRIVE
GEAR RATIO	32:1
BUMPER GUARD	NO

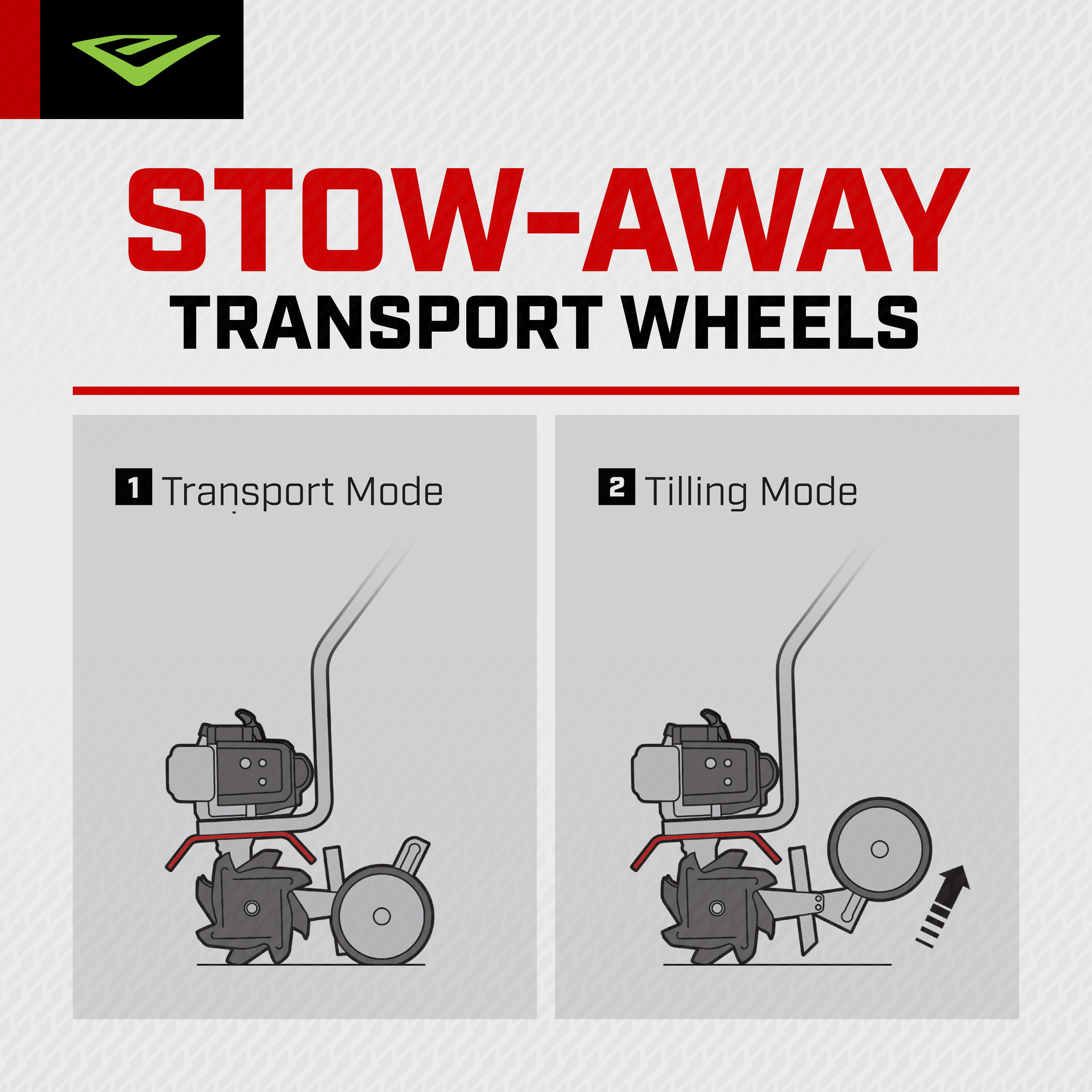

WHEEL DIAMETER (IN)	7
WHEEL WIDTH (IN)	1.5
WHEEL MATERIAL	GREY PLASTIC HUB / RUBBER TIRE
LABELING	PICTOGRAM / EN, FR
EXCLUDED STATES	NONE
ILLUSTRATED PARTS LIST	MANUAL, ONLINE
MANUAL LANGUAGE	ENGLISH / SPANISH / FRENCH

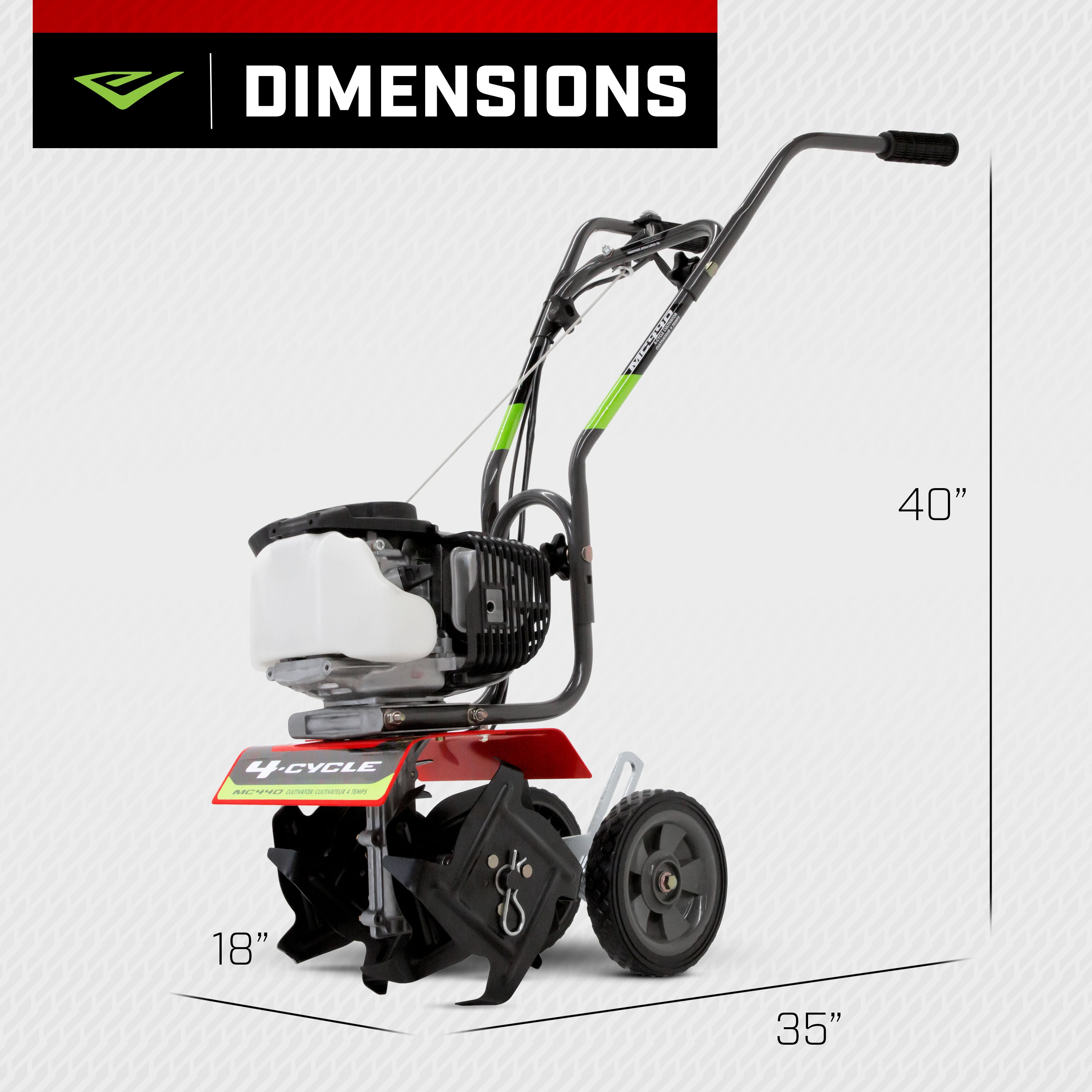

ASSEMBLED DIMENSIONS (IN)	33.8 X 17.8 X 40.6
PACKAGED DIMENSIONS (IN)	20.5 X 11.8 X 20.5
NET WEIGHT (LB)	32
GROSS WEIGHT (LB)	37
CARTON STYLE	4-COLOR BOX
PALLET QTY	32 UNITS
40’ HC CONTAINER QTY	860 UNITS
UPC CODE	012642 000041
WARRANTY	5-YEAR LIMITED
