- Powerful 4-cycle Kohler engine
- 2-person operation
- Steel handlebars protect the engine

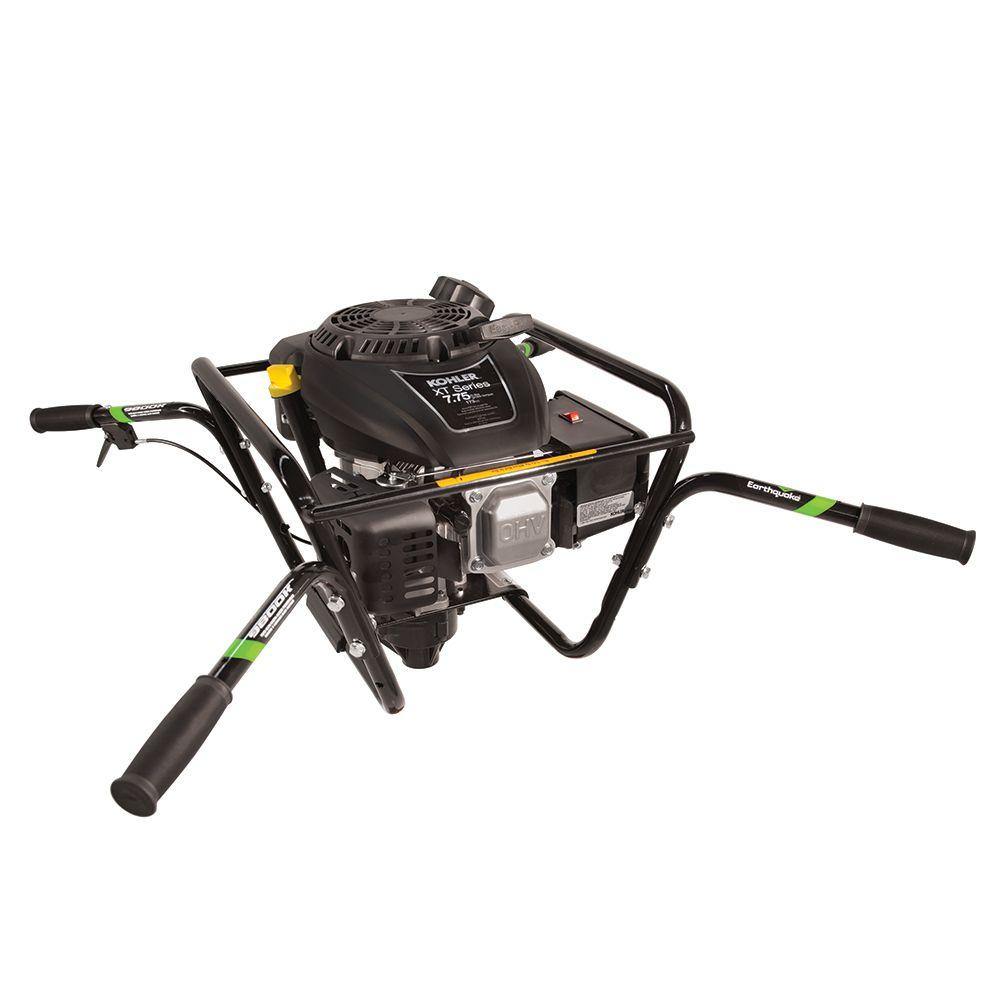

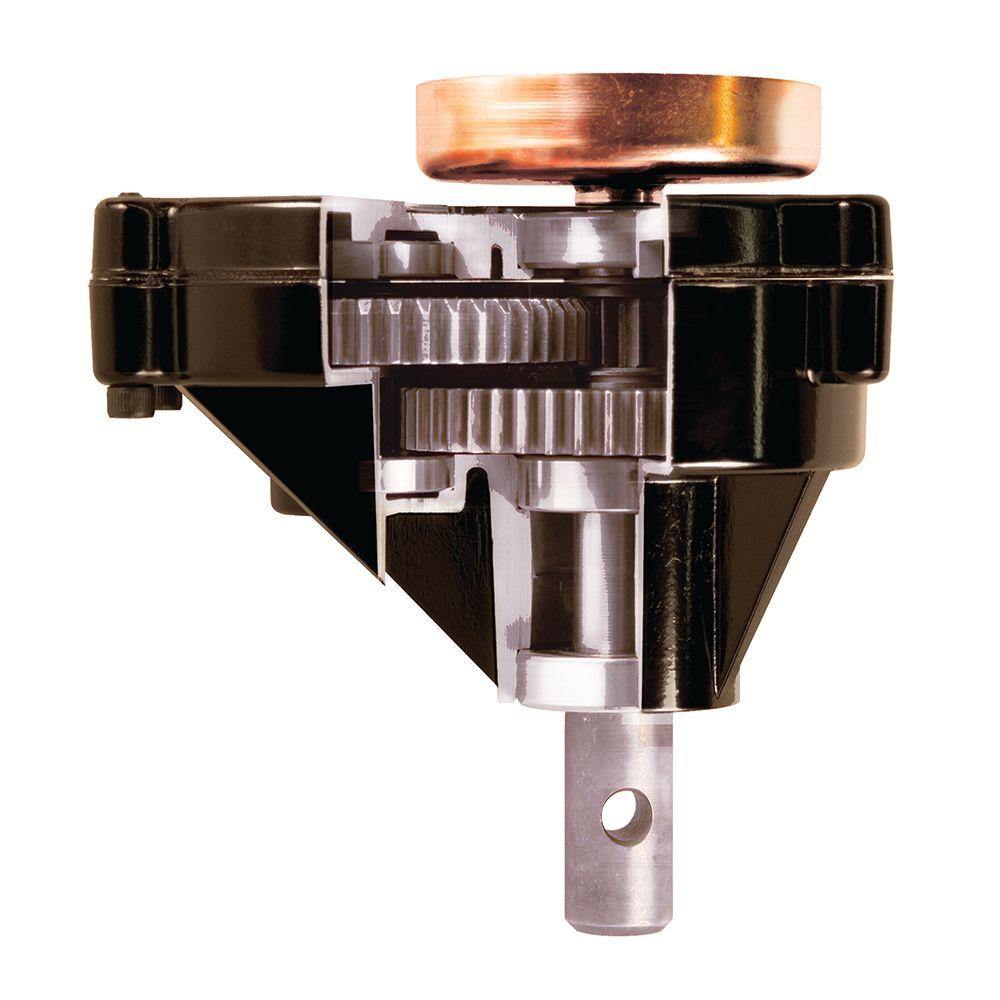

The Earthquake® 9800K™ powerhead features a Kohler® engine. This engine offers enough power for the toughest drilling jobs. The solid steel, heat-treated alloy gears and the 3 inch centrifugal clutch make an exceptionally durable unit.
Product Specifications
| ENGINE TYPE | KOHLER® 4-CYCLE |
|---|---|
| ENGINE DISPLACEMENT | 173CC |
| ENGINE TORQUE | 7.75 FT-LB @ 2600 RPM |
| SHAFT CONFIGURATION | VERTICAL |
| TRANSLUCENT FUEL TANK | NO |
| FUEL TANK CAPACITY | 0.25 GALLONS |
| FUEL TYPE | 87+ OCTANE UNLEADED |
| STARTING SYSTEM | RECOIL |
| OIL CAPACITY | 20 FL-OZ |
| RECOMMENDED OIL | 10W-30 |
| ON/OFF SWITCH | ON ENGINE |
| CERTIFICATIONS | CARB, EPA |
| HANDLEBAR | WELDED STEEL JOB-SITE CAGE |
| NUMBER OF OPERATORS | 2-MAN |
| OUTPUT TORQUE | 232 FT-LB |
| MAX RPM | 125 |
| GEAR RATIO | 30:01:00 |
| OUTPUT SHAFT DIAMETER | 7/8 IN |
| CROSSHOLE | 3/8 IN |
| HOUSING MATERIAL | CAST ALUMINUM |
| RUST RESISTANT | YES |
| NET WEIGHT (LB) | 55 |
| GROSS WEIGHT (LB) | 62 |
| ASSEMBLED DIMENSIONS (IN) | 34.6 X 31.1 X 19.7 |
| BOX DIMENSIONS (IN) | 17.75 X 19 X 23.75 |
| 40’ HC CONTAINER QTY | 440 UNITS |
| PALLET QTY | 18 UNITS |
| TRAILER QTY | 396 UNITS |
| UPC CODE | 012642 004230 |
| WARRANTY | LIMITED, 5-YEAR PRODUCT, 2-YEAR ENGINE |
