140cc Briggs and Stratton Engine
-
Tuck Under Wheels For Easy Transport
-
Adjustable Tilling Width (11", 16" or 21")

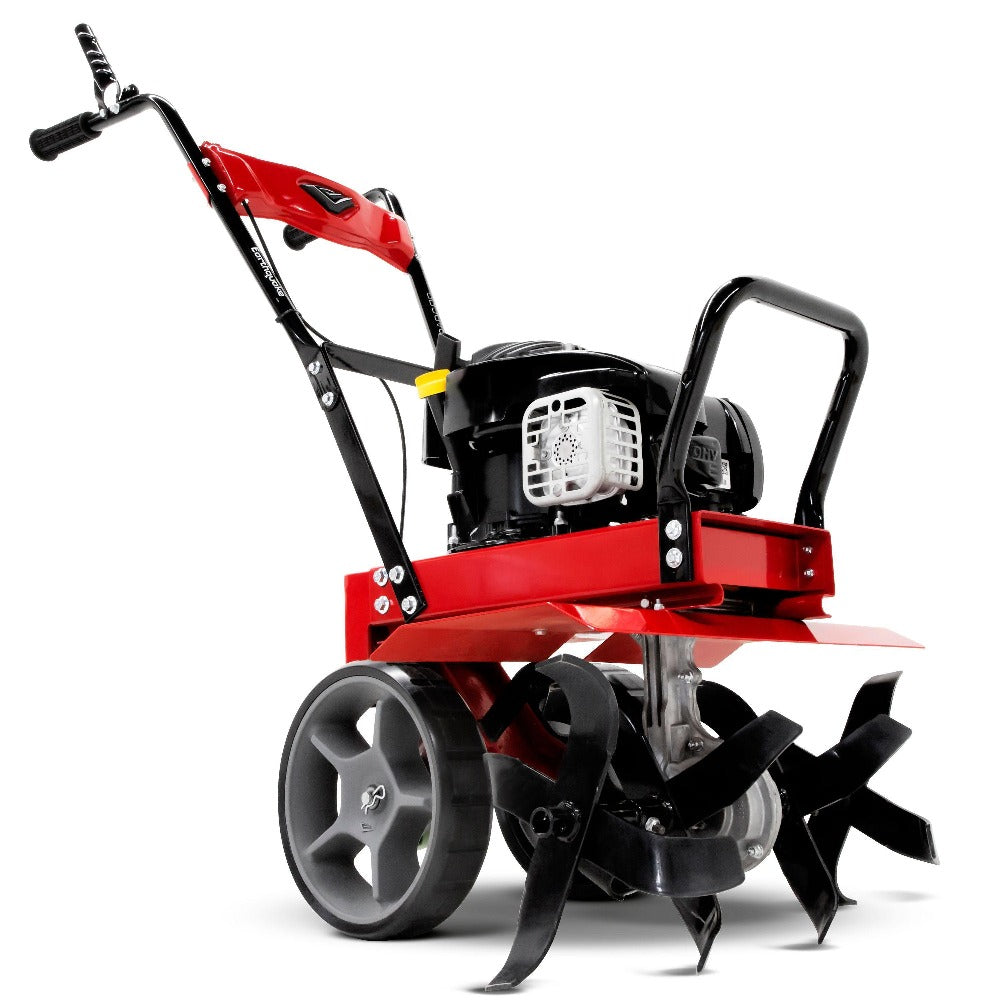

The Earthquake Badger Front Tine Tiller features a two-position, heavy-duty, cast iron tail and wheel assembly. With the wheels in the forward position, transport is a breeze. In the extended position, the center of gravity is lowered for incredible control and deep-tilling performance in the row.
Powered by a 140cc 4-cycle Briggs and Stratton engine, the Badger provides plenty of power to accomplish your tilling tasks. Easily adjust the tilling width with no tools required by simply adding or removing tines. The tilling width can be adjusted from 11 inches, up to 21 inches wide. With its compact frame and balanced weight distribution, the Badger allows for fluid navigation in tight growing spaces and stable pivoting capability at the end of garden rows. The airless wheels, robust forged tines, and all steel construction are all hallmarks of a Front Tine Tiller built to last.
Specifications
| Specification | Details |
|---|---|
| Model | 32228 |
| Certifications | CARB, EPA III, ICES-002 |
| Drive System | Bronze Gear Drive |
| Engine Brand | Briggs & Stratton |
| Engine Displacement | 140cc |
| Engine / Motor Torque | 5.5 ft-lb gross |
| Fuel Type | 87+ Octone Unleaded Gasoline |
| Gear Ratio | 7.5:1 |
| Net Weight | 102 |
| Number of Speeds | 1 |
| Number of Tines | 4 |
| Recommended Oil | SAE 10W-30 |
| Starting System | Recoil |
| Tilling Depth | 11 |
| Tilling Width | Adjustable (11", 16", 21") |
| Tine Diameter | 11.6 inches |
| Tine Rotation | SRT |
| Tine Speed | 169 RPM |
| Tine Torque |
96.25 ft-lb |
| Tire Diameter | 11.2 |
| Warranty | 5-Year Limited Warranty |
