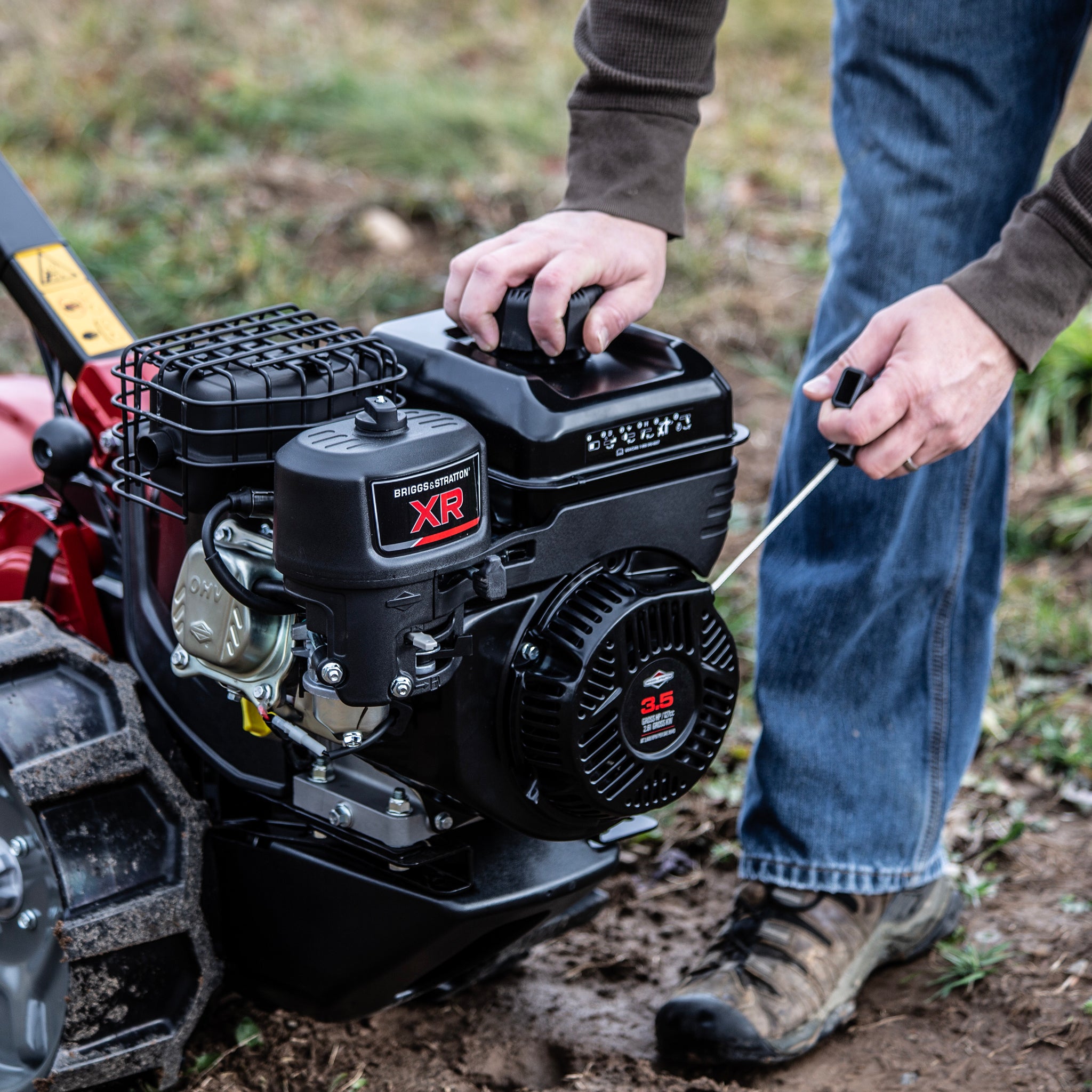

127cc Briggs & Stratton Engine

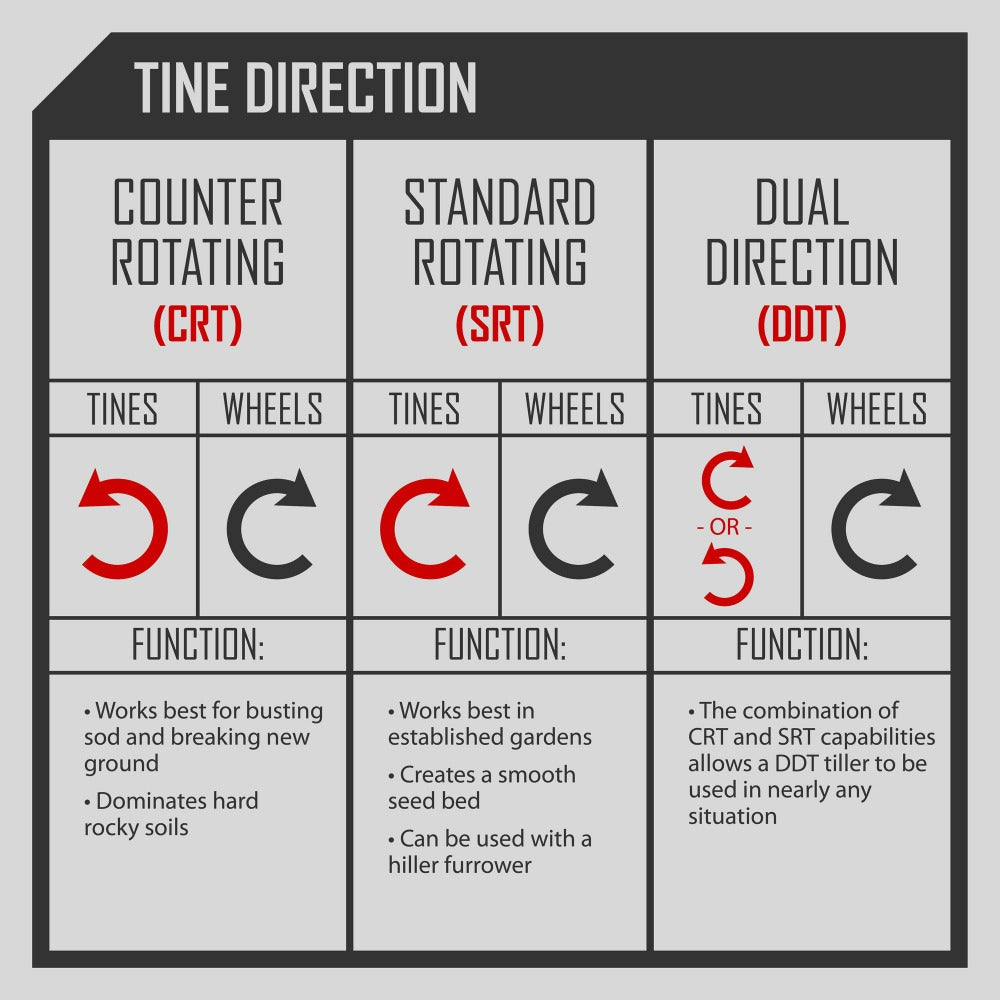

- Dual Direction Tines

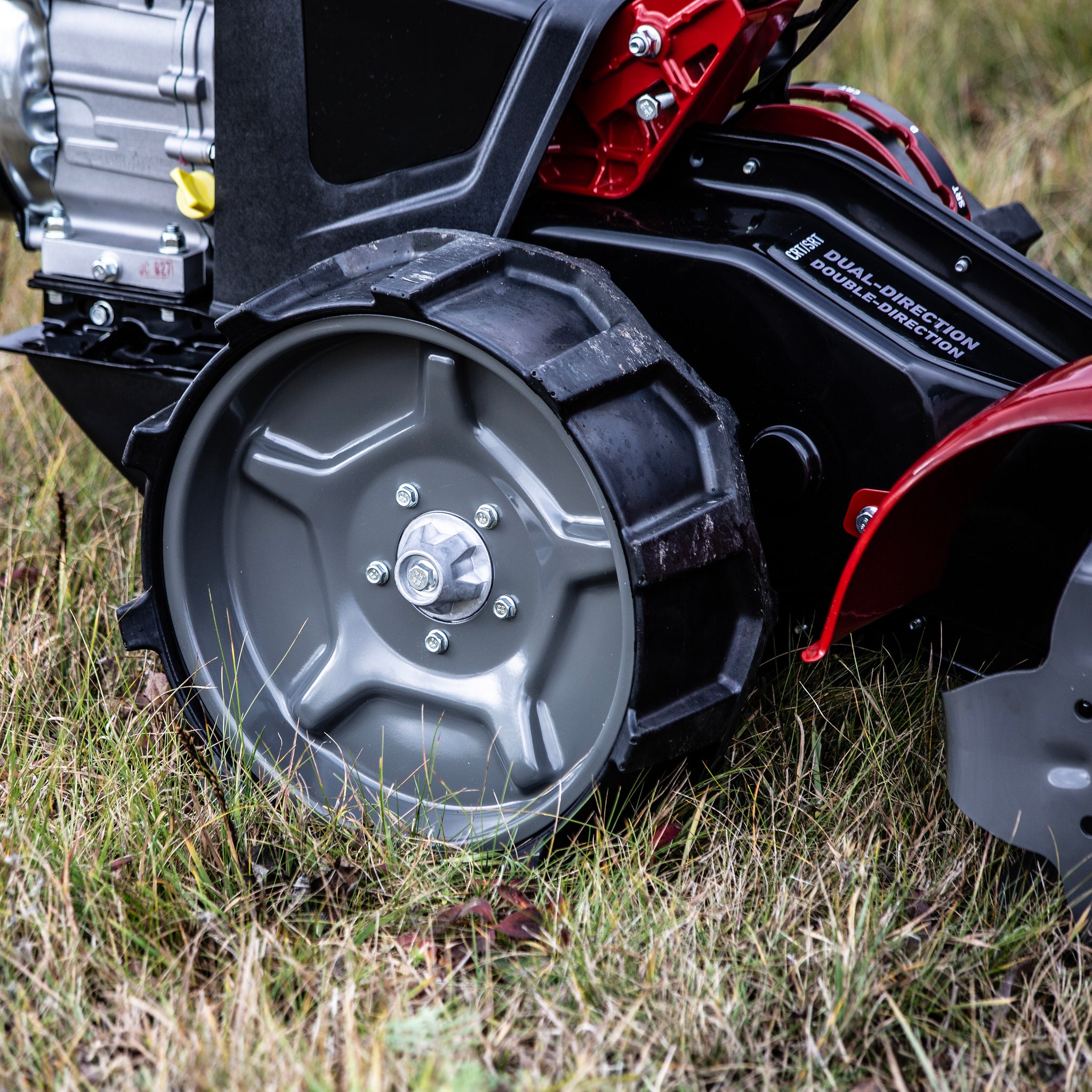

- Self-Propelled Steel Wheels
- 17" Tilling Width

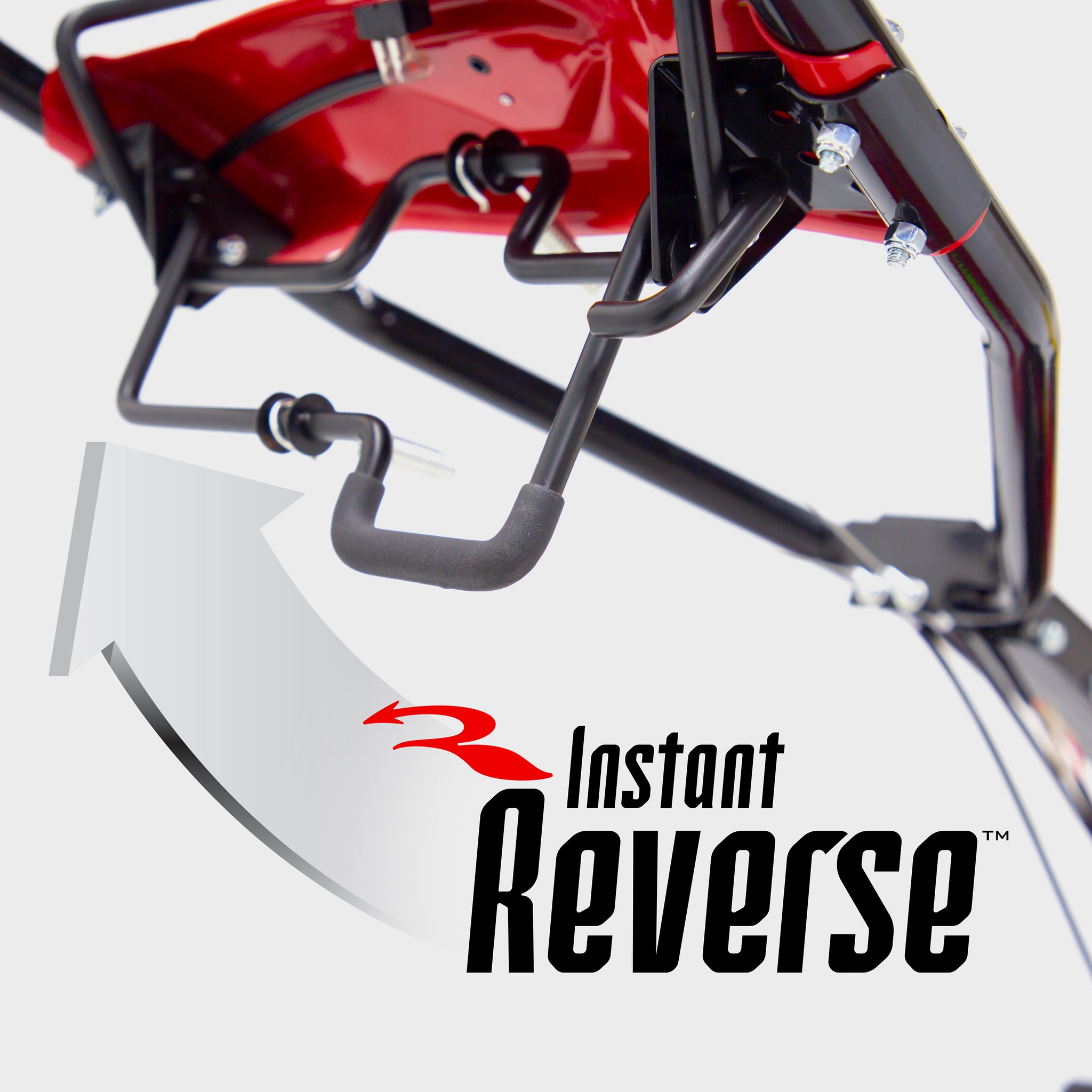

- Instant Reverse

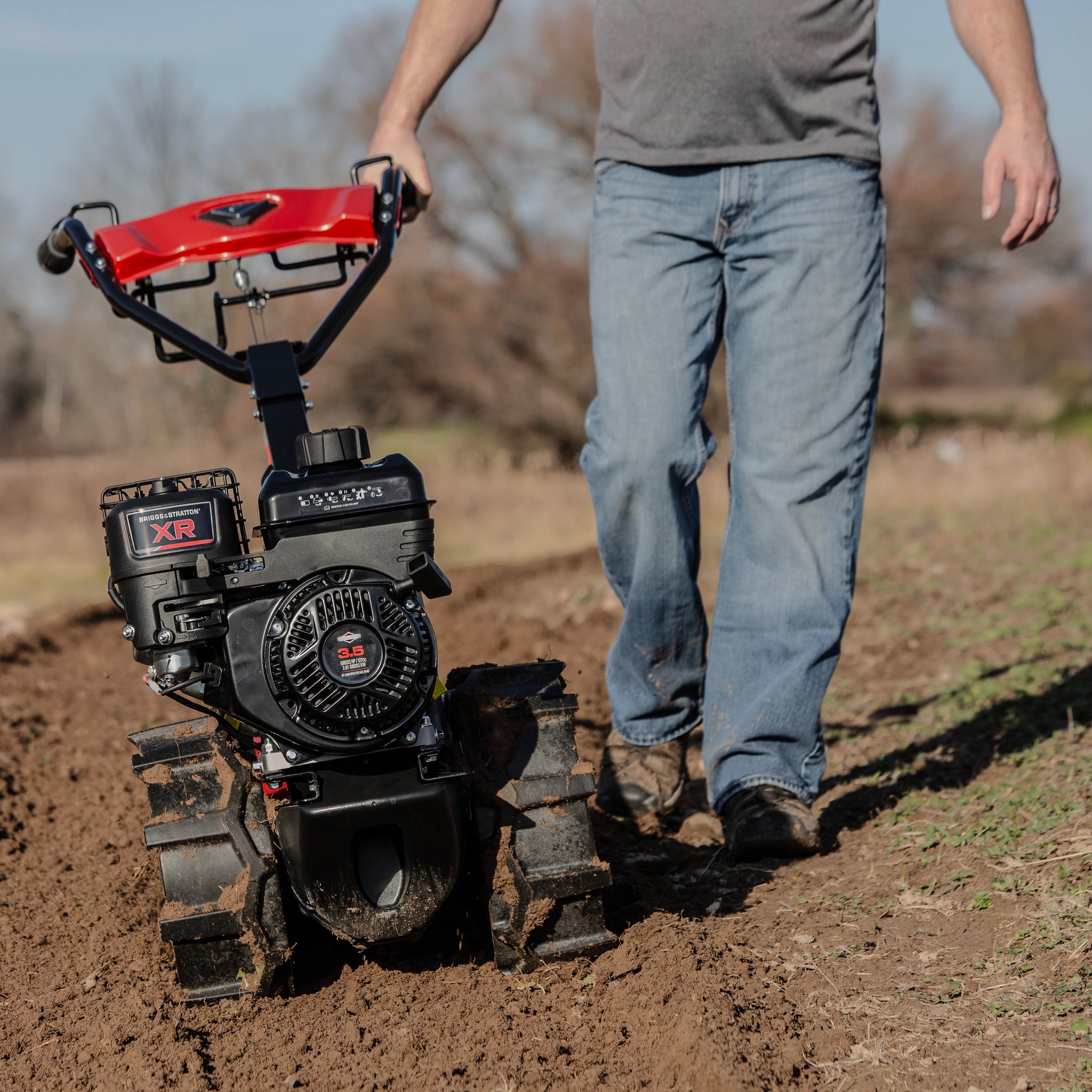

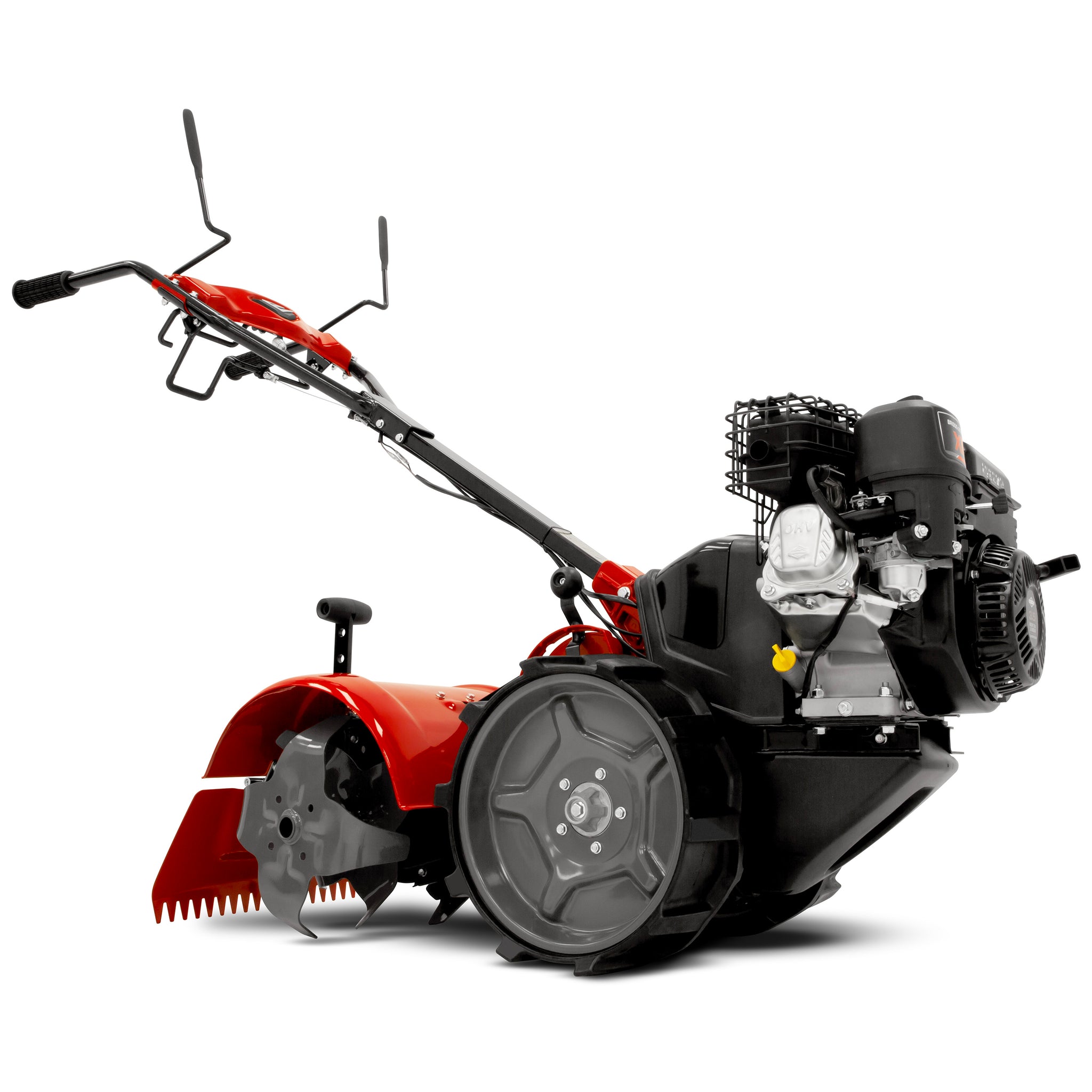

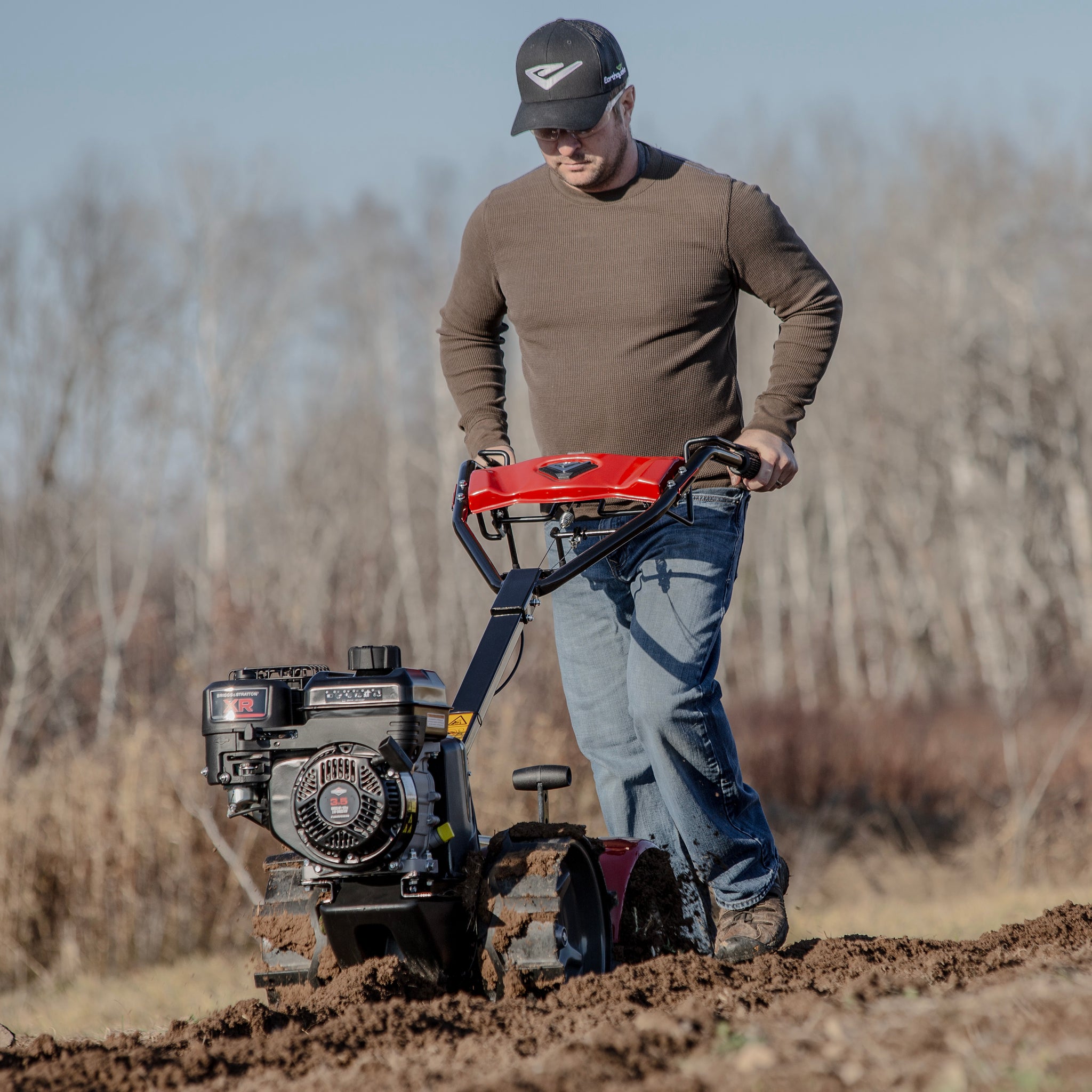

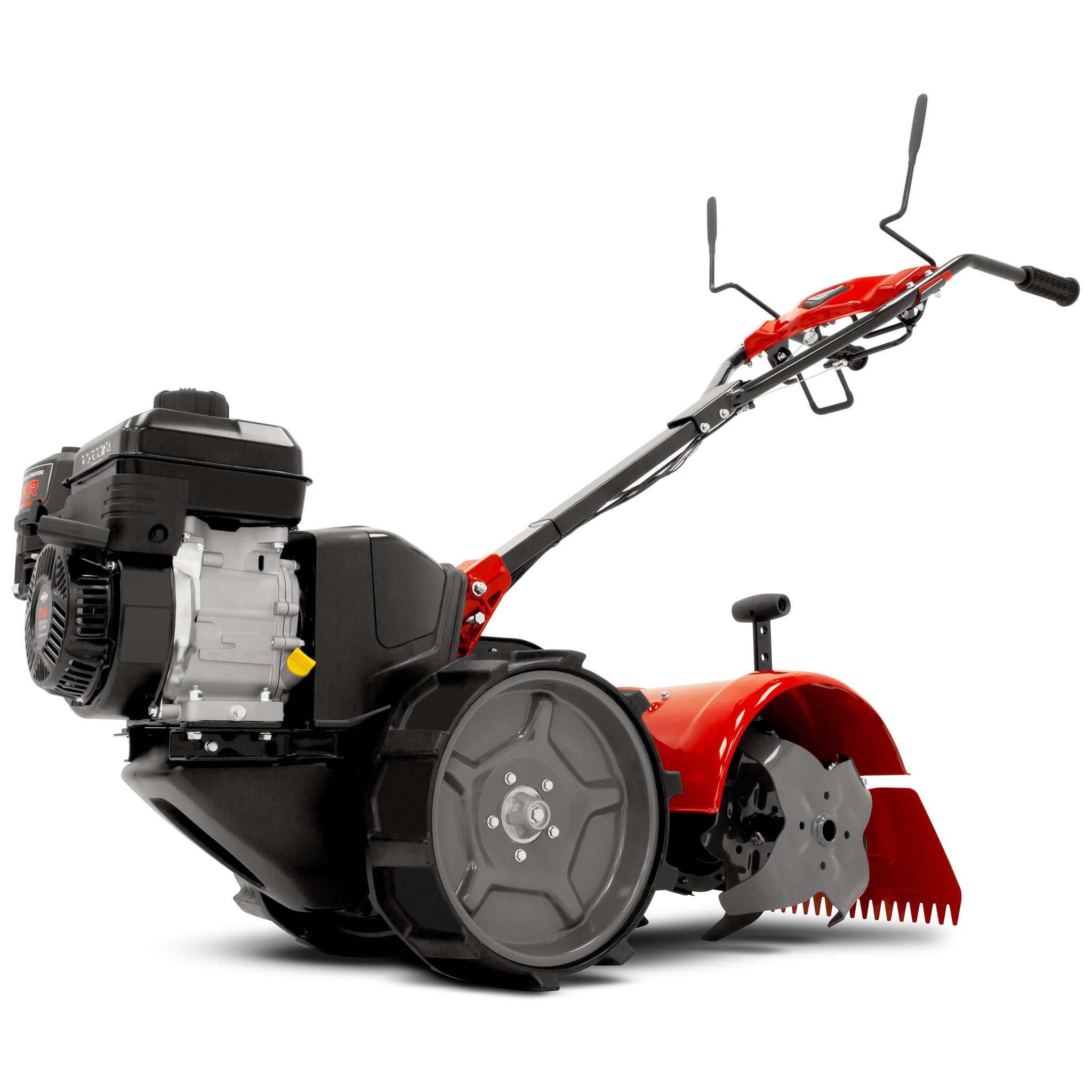

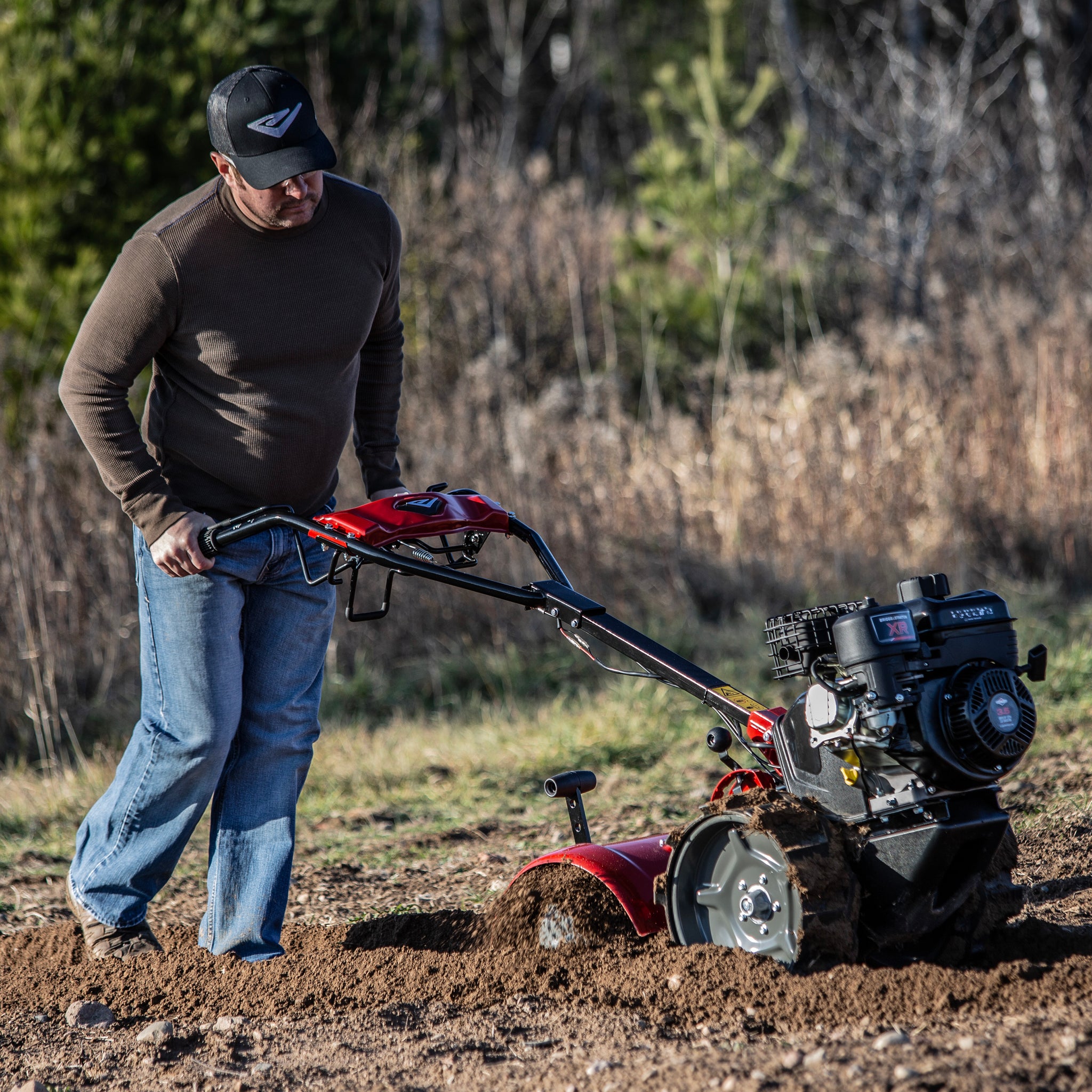

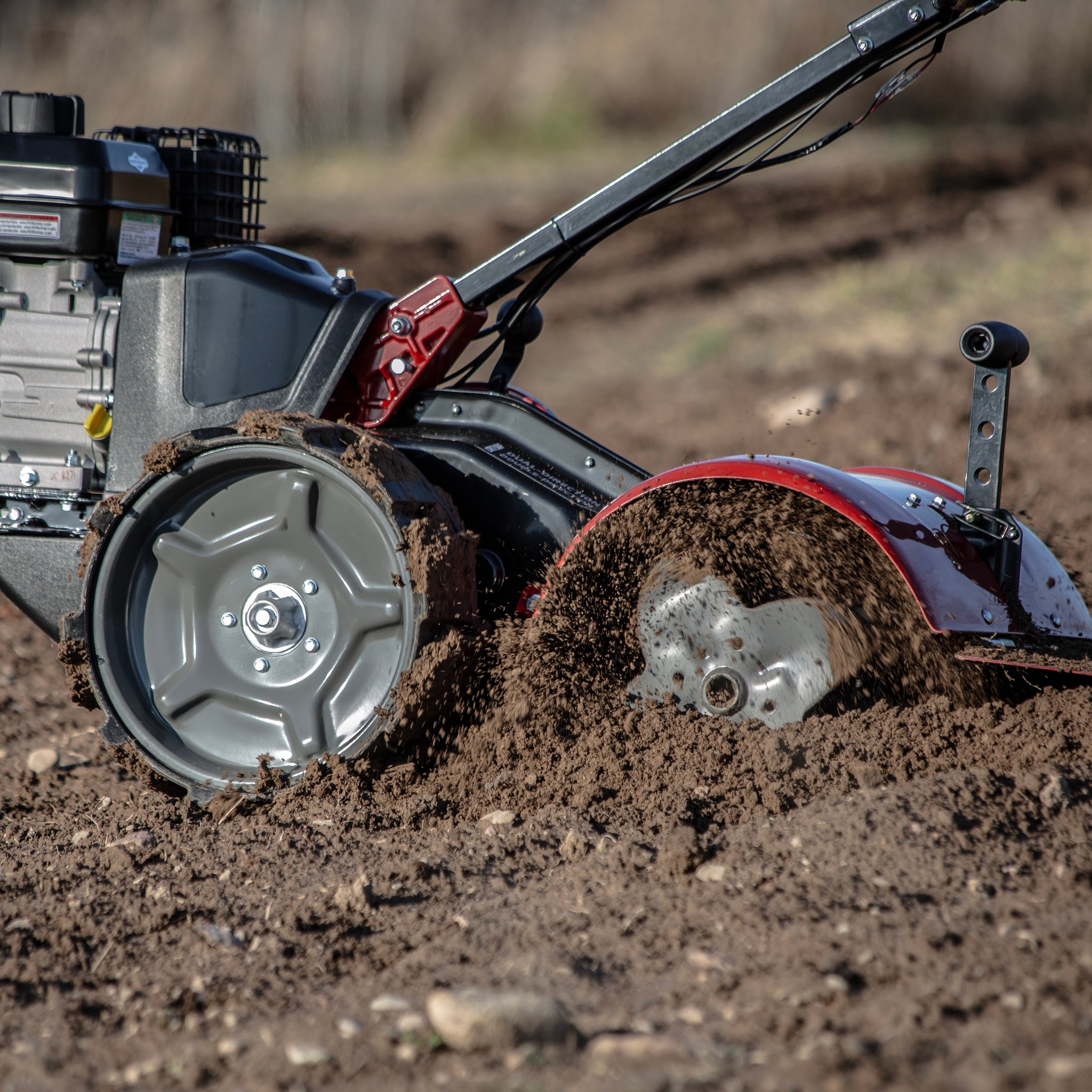

The Earthquake Pioneer features a 127cc Briggs & Stratton engine that delivers optimal power to the rear-mounted tines for impressive soil turning capability without sacrificing maneuverability. Dual Direction tines allow the Pioneer™ to bust through sod in CRT mode, and polish the perfect seed bed in SRT mode. Featuring instant reverse, a simple pull of a handle allows you to back up without shifting gears. Dual control handlebars and a compact footprint make maneuvering in tight spaces a breeze and allow for one handed operation. Super-wide airless tires with steel rims never go flat and provide incredible traction. The Pioneer Rear Tine Tiller is backed by a 5-year product, 2-year engine warranty.
Specifications
| Specification | Details |
|---|---|
| Model Number | 46059 |
| Certifications | EPA, CARB, ICES-002 |
| Drive System | Bronze Gear Driven |
| Engine Brand | Briggs & Stratton |
| Engine Displacement | 127cc |
| Engine / Motor Torque | 5.5 FT-LBF @ 3600 RPM |
| Engine Type | 4-Cycle |
| Fuel Tank Capacity | 0.50 GAL |
| Fuel Type | 87+ Octane Unleaded Gasoline |
| Gear Ratio | 18:1 |
| Gross Weight | 165 LBS |
| Net Weight | 160 LBS |
| Number of Speeds | 1 |
| Number of Tines | 4 |
| Recommended Oil | SAE 10W-30 |
| Oil Capacity |
20.29 FL-OZ |
| Self Propelled | Yes |
| Starting System | Recoil |
| Tilling Depth | 11.25" |
| Tilling Width | 17" |
| Tine Diameter | 11.38" |

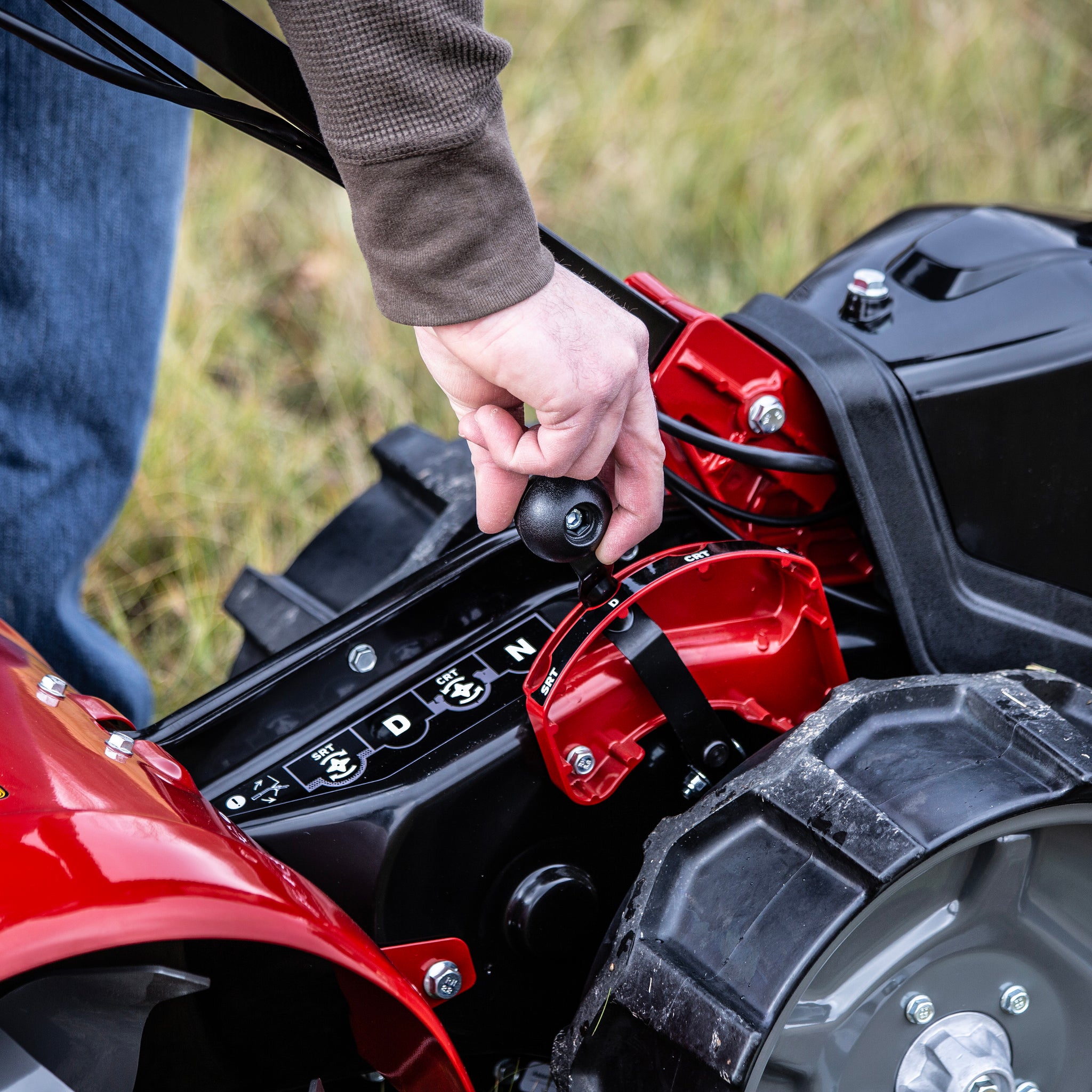

| Tine Rotation | Dual Direction: SRT & CRT |
| Tine Speed | 202 RPM |
| Tine Torque | 99 FT-LB |
| Tire Diameter | 11.8" |
| Tire Material | Steel Wheel, Airless Rubber Tire |
| Tire Width | 5.3" |
| Warranty | 5-Year Product, 2-Year Engine Limited |
